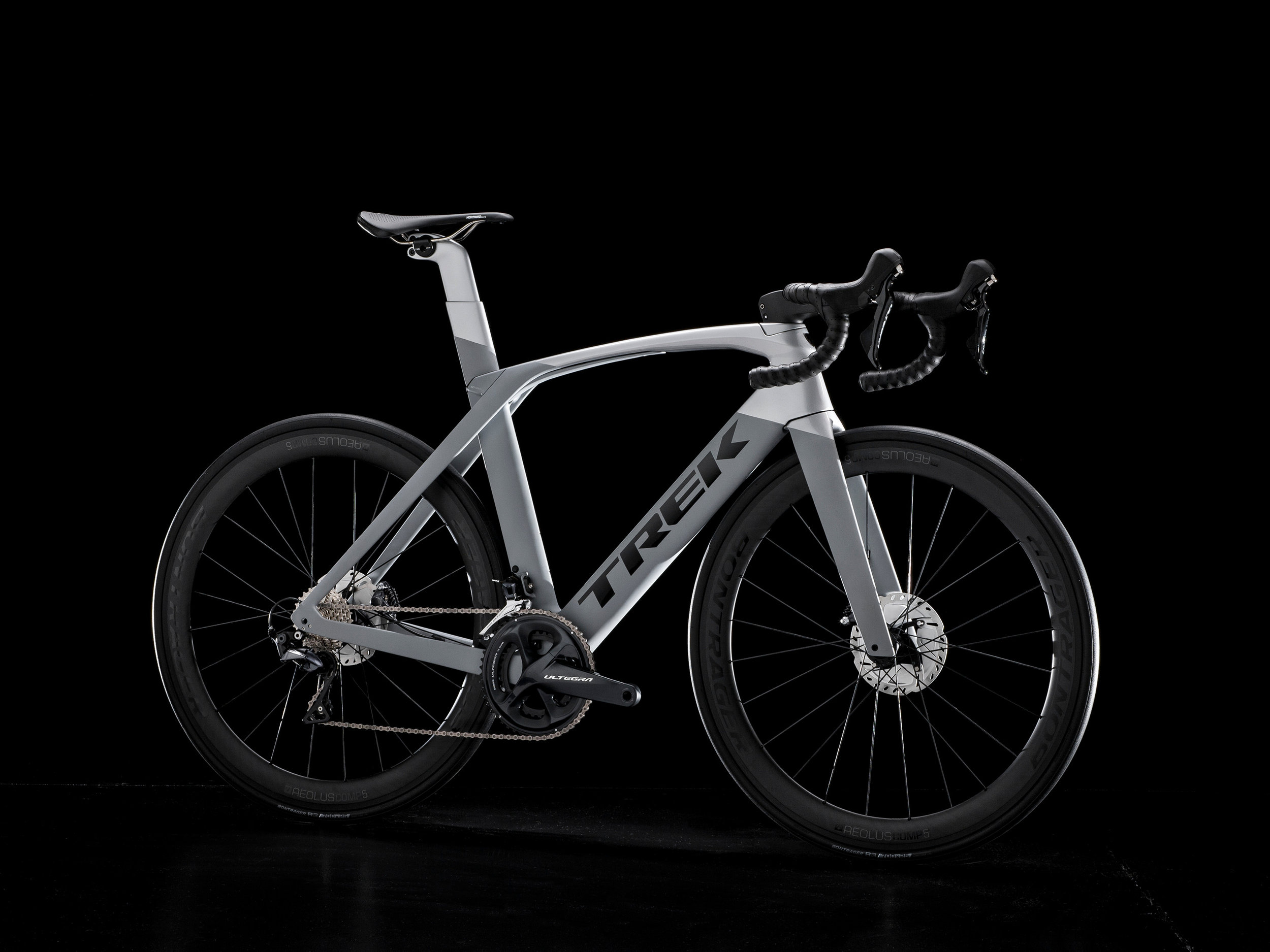

Madone SLR 6 Disc
Madone SLR 6 Disc brings the ultimate racing bike platform to the next level of performance with road-smoothing Adjustable Top Tube IsoSpeed, a slider on the top tube that allows you to fine-tune the amount of compliance in your frame. Race-worthy parts and wheels, hydraulic disc brakes, endless adjustment options and our lightest 700 Series OCLV Carbon make it the right choice for anyone who wants to add more trophies and medals to their collection.
Colour: Matte Gravel/Gloss Quicksilver
Sizes: 50, 52, 54, 56, 58, 60, 62
It's right for you if...
You want speed, light weight, aerodynamics, the extra stopping power and tyre clearance that come with hydraulic disc brakes and a workhorse drivetrain that's fully capable of racing but won't quit on your hardest training rides either.
The tech you get
A lightweight 700 Series OCLV Carbon frame with Kammtail Virtual Foil aerodynamic tube shaping and road-smoothing Adjustable Top Tube IsoSpeed, KVF full carbon disc fork, an adjustable aero bar and stem, a 2x11 Shimano Ultegra drivetrain, Tubeless Ready Bontrager Aeolus Comp Disc wheels, a micro-adjust Madone seatmast and Shimano Ultegra flat mount hydraulic disc brakes.
The final word
A Madone-specific 700 Series OCLV Carbon layup for aerodynamics, light weight and superior ride quality. The aero frame, hydraulic disc brakes and a race-worthy drivetrain make this ride your quickest way to the podium.
Why you'll love it
1 - Adjustable Top Tube IsoSpeed lets you adjust compliance, and it's damped with an elastomer so even when it's in the most compliant setting, you won't bounce on the road
2 - Disc brakes offer better braking performance and extra clearance for wider, more stable tyres
3 - A separate bar and stem with an aero carbon faceplate gives you great adjustability without compromising on aerodynamics
4 - The micro-adjust Madone seatmast has an integrated mount for the Bontrager Flare RT rear light
700 Series OCLV
The lightest, strongest carbon avaiable. 700 series OCLV is the ultimate combination of superior modulus and superior strength, and it’s only from Trek.
Adjustable Top Tube IsoSpeed
Feature all-new Top Tube IsoSpeed that is damped to rebound in a smooth and controlled motion providing maximum rider compliance. Top tube IsoSpeed is also adjustabel to customize the compliance to rider preference and terrain.
New H 1.5 geometry, developed with Trek Segafredo and drops pro cycling teams, puts the rider in the optimal aero race position and is featured on Madone SLR family. It is the sweet spot for what our racers want.
KVF Tube Shape
We’ve optimized our revolutionary KVF tube shape to complement Madone’s ultimate integration, creating a lightweight and super-aerodynamic frame that outclasses any competitor.

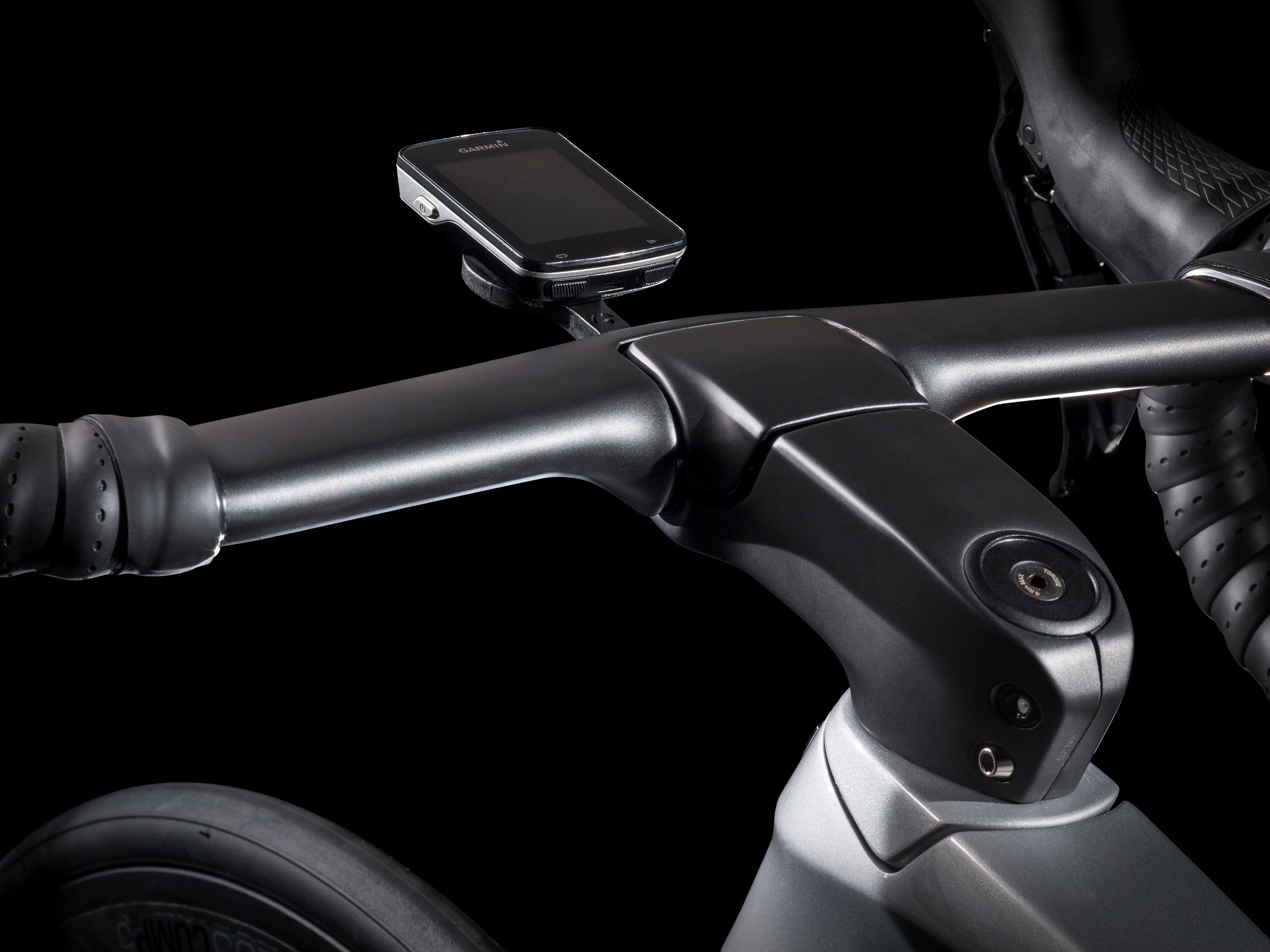

Adjustable Madone Bar stem combo
The Madone SLR also provides riders more stem options and additional bar sizes and +/-5 degrees of bar rotation. With this new fit update, Trek offers one of the broadest spectrums of possible race fits for men and women with an integrated aero cockpit.
Hidden seat mast
Madone’s hidden seat prost is an integrated internal wedge design to provide a cleaner, aerodynamic look to the back of the seat mast.
Don’t settle for anyone else’s bike. Create your very own with Project One, Trek’s custom bike program. learn more
Shimano Di2 electronic shifting offers the ultimate in speed and precise, reliable shifting. Riders can switch between gears quickly and effectively with the touch of a button. More compact lever hoods improve comfort and control, while Shimano’s Di2 internal battery hides inside the frame for clean, fresh look.
Bontrager Blendr stem technology lets you clip your gear directly to the stem for clean looks, maximum user friendliness.
The brake and shift cables of the most aerodynamic bike are routed through the frame for the ultimate in sleek, aerodynamic performance.

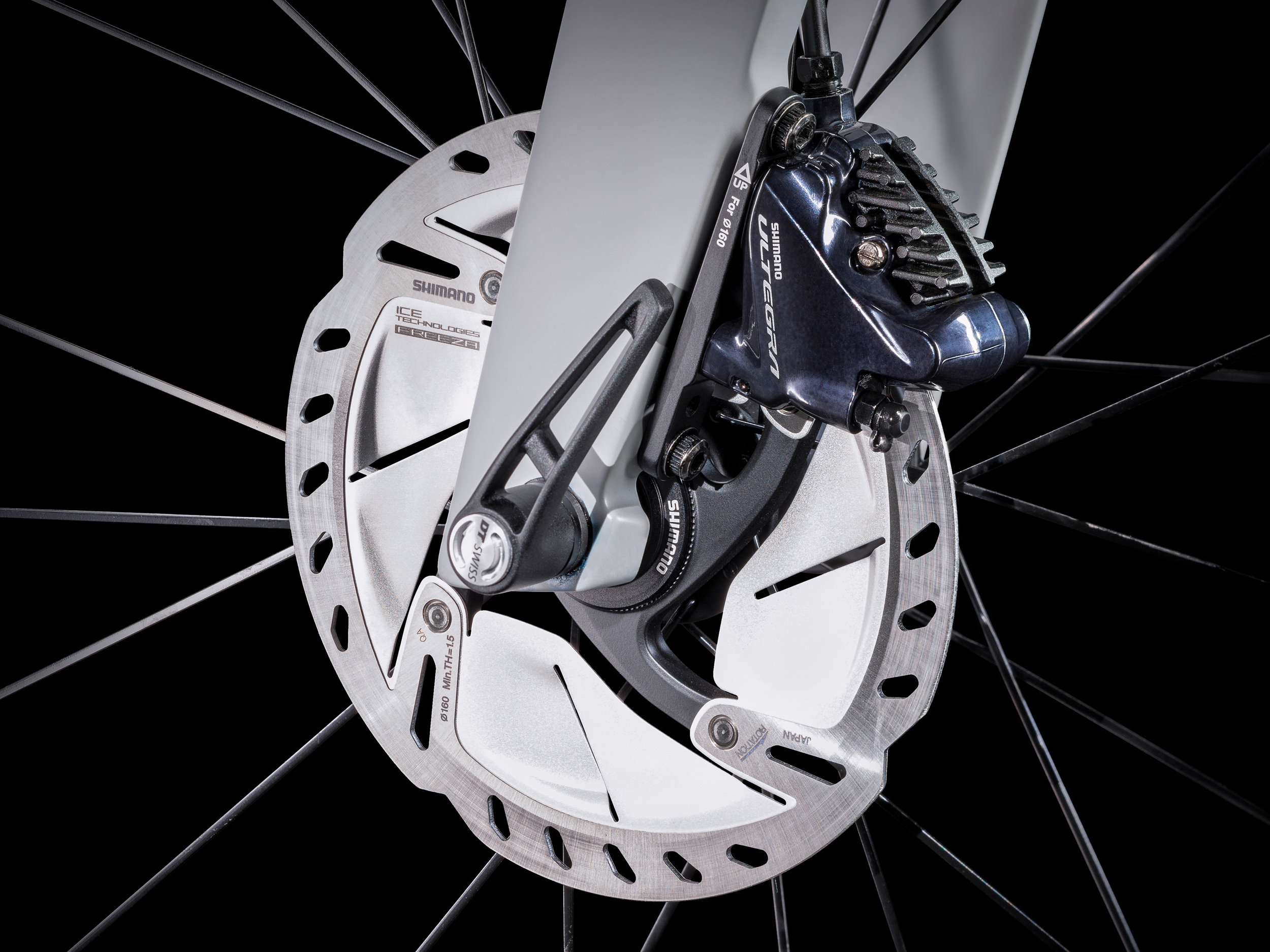

Flat Mount Disc Brakes
All-new Flat Mount disc brakes are more elegant, lighter, smaller and cleaner than traditional disc brakes, providing superior performance and stopping power under harsh conditions.

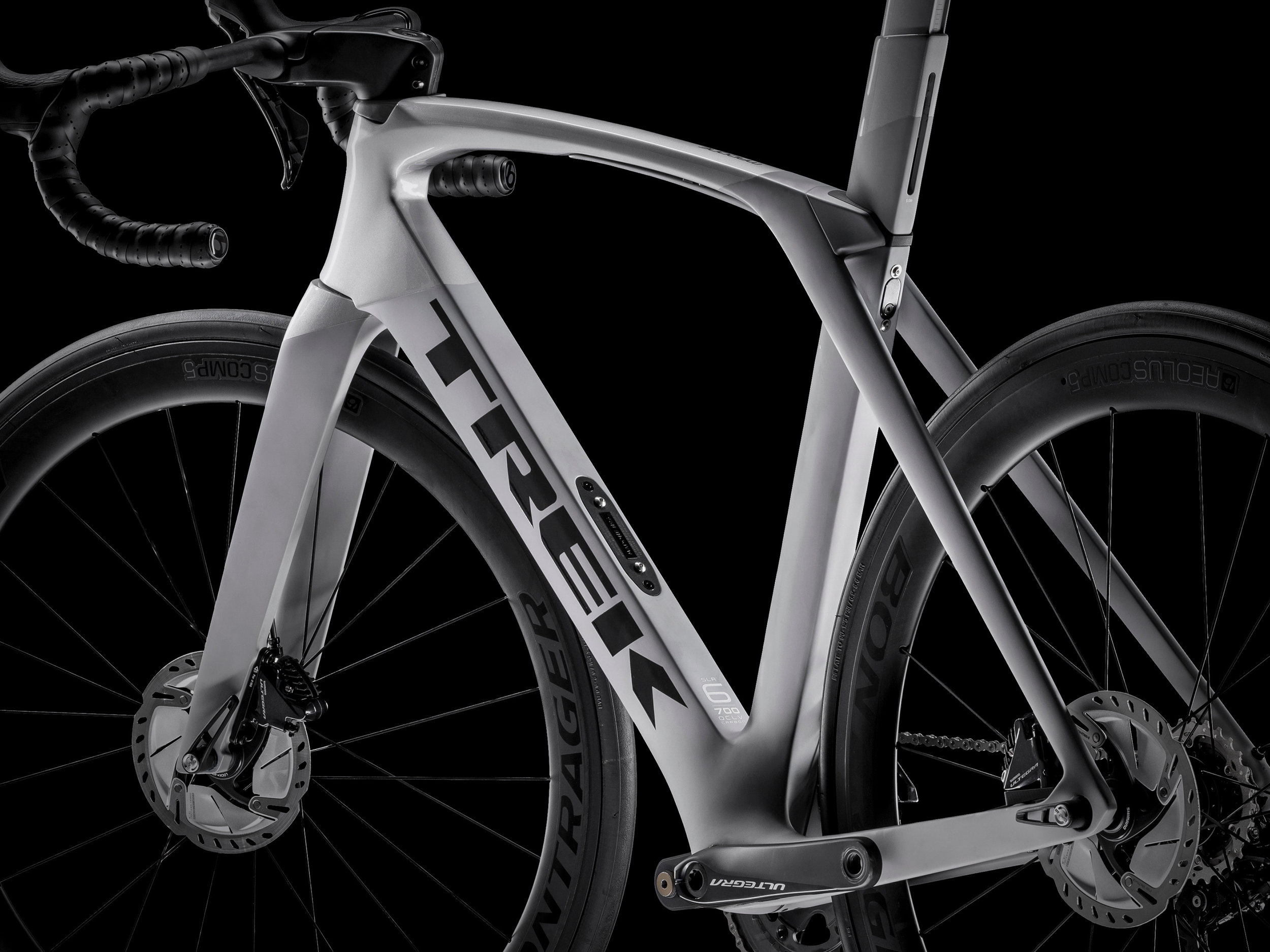

Frame - 700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Adjustable Top Tube IsoSpeed, Micro-adjust seatmast, tapered head tube, BB90, flat mount disc brakes, 12mm thru-axle, invisible cable routing, control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
Fork - Madone KVF full carbon disc, carbon tapered steerer, carbon dropouts, hidden cable routing, flat mount disc brake, 12 mm thru-axle
Wheels - Bontrager Aeolus Comp Disc Tubeless Ready, 12 mm thru-axle
Tyres - Bontrager R3 Hard-Case Lite, 120 tpi, aramid bead, 700x25c
Shifters - Shimano Ultegra, 11 speed
Front derailleur - Shimano Ultegra, braze-on
Rear derailleur - Shimano Ultegra
Crank - Shimano Ultegra, 50/34 (compact)
Bottom bracket - BB90
Cassette - Shimano Ultegra, 11-28, 11-speed
Chain - Shimano Ultegra
Saddle - Bontrager Montrose Elite, titanium rails
Seatpost - Madone carbon seatpost, 25mm offset w/integrated light mount
Handlebar - Madone specific adjustable aero VR-CF, internal cable routing
Grips - Bontrager tape
Stem - Madone-specific internal cable routing
Head set - Madone integrated, stainless cartridge bearings, sealed, 1-3/8˝ top, 1.5˝ bottom
Brake set - Shimano Ultegra flat mount hydraulic disc
Weight - 56cm - 8.38 kg / 18.47 lbs
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Sizing & fit
Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on trekbikes.com are for general comparison purposes only. To find your perfect fit, visit an authorised Trek retailer, where an expert skilled at sizing will help you find the appropriate bike and size for your individual needs.
All measurements provided in cm unless otherwise stated.
