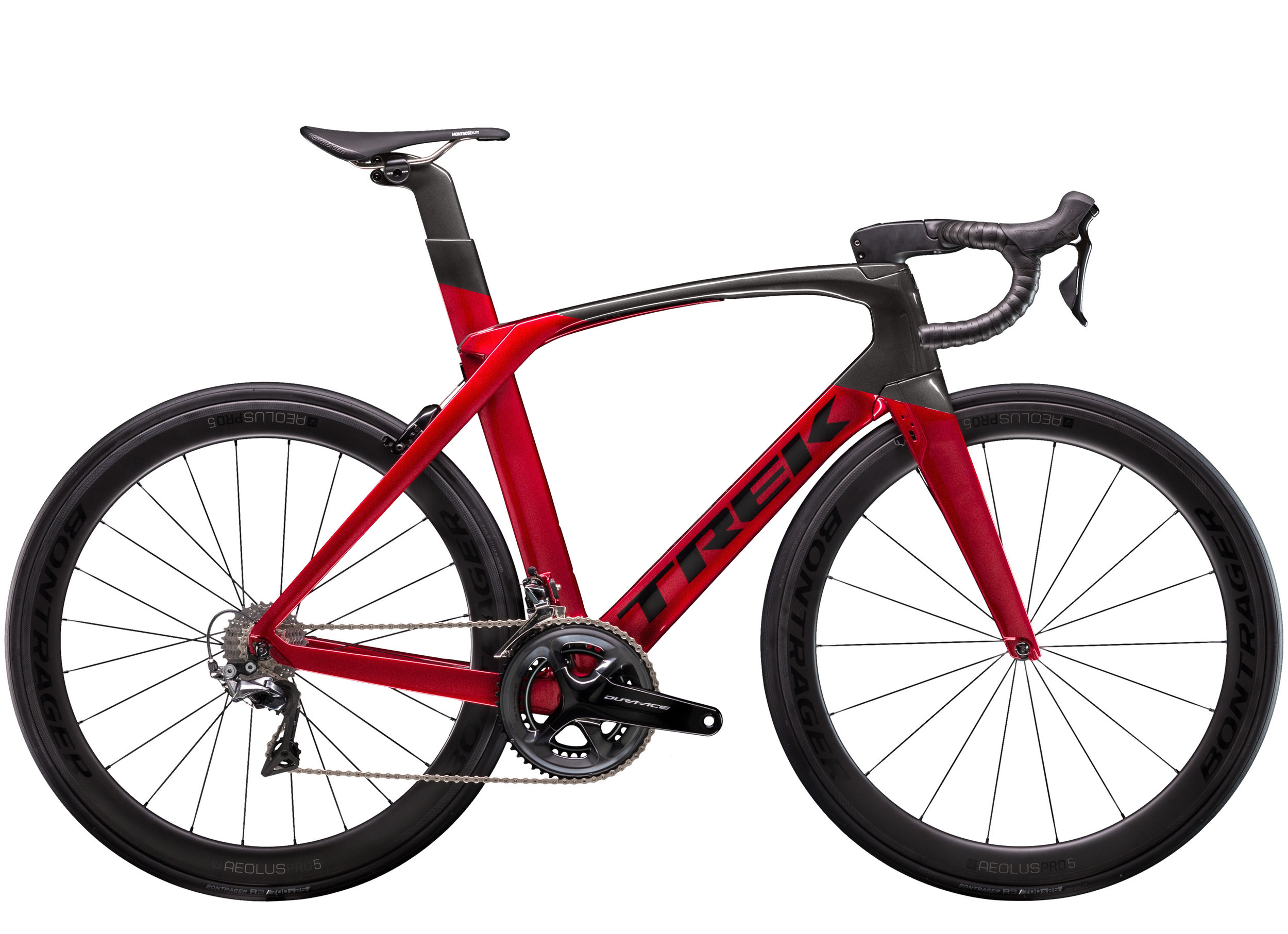

Madone SLR 8
Madone SLR 8 is a no-compromise carbon race bike. It checks all the boxes in the high-performance road bike category: it's light, super aerodynamic, and compliant. It's built for flat-out speed, with a top-level mechanical drivetrain, aero carbon wheels, and Adjustable Top Tube IsoSpeed so you can fine-tune the compliance of your frame to your terrain.
Colour: Rage Red/Trek Black
Sizes: 50, 52, 54, 56, 58, 60, 62
It's right for you if...
You like speed and you like winning. You know a great race bike is an investment in your performance, and you want the bike that can take you to the next level.
The tech you get
A lightweight 700 Series OCLV Carbon frame with Kammtail Virtual Foil aerodynamic tube shaping and road-smoothing Adjustable Top Tube IsoSpeed, KVF full carbon fork, an adjustable aero bar and stem, a 2x11 Shimano Dura-Ace drivetrain, Tubeless Ready Bontrager Aeolus Pro 5 carbon wheels, a micro-adjust Madone seatmast, and integrated Madone aero brakes.
The final word
The highest-end Madone frame, carbon wheels, and a Shimano Dura-Ace drivetrain come together in Madone SLR 8 to make a ridiculously fast ride with incredible ride quality.
Why you'll love it
The walkthrough
1 - This is the benchmark platform for race bikes: it's smooth, light, and aero in one complete package, and this is a recipe no competitors can touch
2 - Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion.
3 - A separate bar and stem with an aero carbon faceplate gives you great adjustability without compromising on aerodynamics
4 - The Madone seatpost has an integrated mount for the Bontrager Flare RT tail light
5 - Madone Project One ICON paint schemes make the ultimate race bike a true piece of artwork
Features
700 SERIES OCLV
The lightest, strongest carbon avaiable. 700 series OCLV is the ultimate combination of superior modulus and superior strength, and it’s only from Trek.
ADJUSTABLE TOP TUBE ISOSPEED
Feature all-new Top Tube IsoSpeed that is damped to rebound in a smooth and controlled motion providing maximum rider compliance. Top tube IsoSpeed is also adjustabel to customize the compliance to rider preference and terrain.
H1.5 FIT
New H 1.5 geometry, developed with Trek Segafredo and drops pro cycling teams, puts the rider in the optimal aero race position and is featured on Madone SLR family. It is the sweet spot for what our racers want.
KVF TUBE SHAPE
We’ve optimized our revolutionary KVF tube shape to complement Madone’s ultimate integration, creating a lightweight and super-aerodynamic frame that outclasses any competitor.
ADJUSTABLE MADONE BAR STEM COMBO
The Madone SLR also provides riders more stem options and additional bar sizes and +/-5 degrees of bar rotation. With this new fit update, Trek offers one of the broadest spectrums of possible race fits for men and women with an integrated aero cockpit.
HIDDEN SEAT MAST
Madone’s hidden seat prost is an integrated internal wedge design to provide a cleaner, aerodynamic look to the back of the seat mast.
PROJECT ONE
Don’t settle for anyone else’s bike. Create your very own with Project One, Trek’s custom bike program. learn more
SHIMANO DI2
Shimano Di2 electronic shifting offers the ultimate in speed and precise, reliable shifting. Riders can switch between gears quickly and effectively with the touch of a button. More compact lever hoods improve comfort and control, while Shimano’s Di2 internal battery hides inside the frame for clean, fresh look.
BLENDR
Bontrager Blendr stem technology lets you clip your gear directly to the stem for clean looks, maximum user friendliness.
INVISIBLE CABLEROUTING
The brake and shift cables of the most aerodynamic bike are routed through the frame for the ultimate in sleek, aerodynamic performance.
FLAT MOUNT DISC BRAKES
All-new Flat Mount disc brakes are more elegant, lighter, smaller and cleaner than traditional disc brakes, providing superior performance and stopping power under harsh conditions.
Specifications
Frameset
Frame - 700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Adjustable Top Tube IsoSpeed, Micro-adjust seatmast, tapered head tube, BB90, direct mount rim brakes, invisible cable routing, control center, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
Fork - Madone KVF full carbon, carbon tapered steerer, carbon dropouts, Madone integrated brake
Wheels
Wheels - Bontrager Aeolus Pro 5 Tubeless Ready
Tires - Bontrager R3 Hard-Case Lite, 120 tpi, aramid bead, 700x25c
Drivetrain

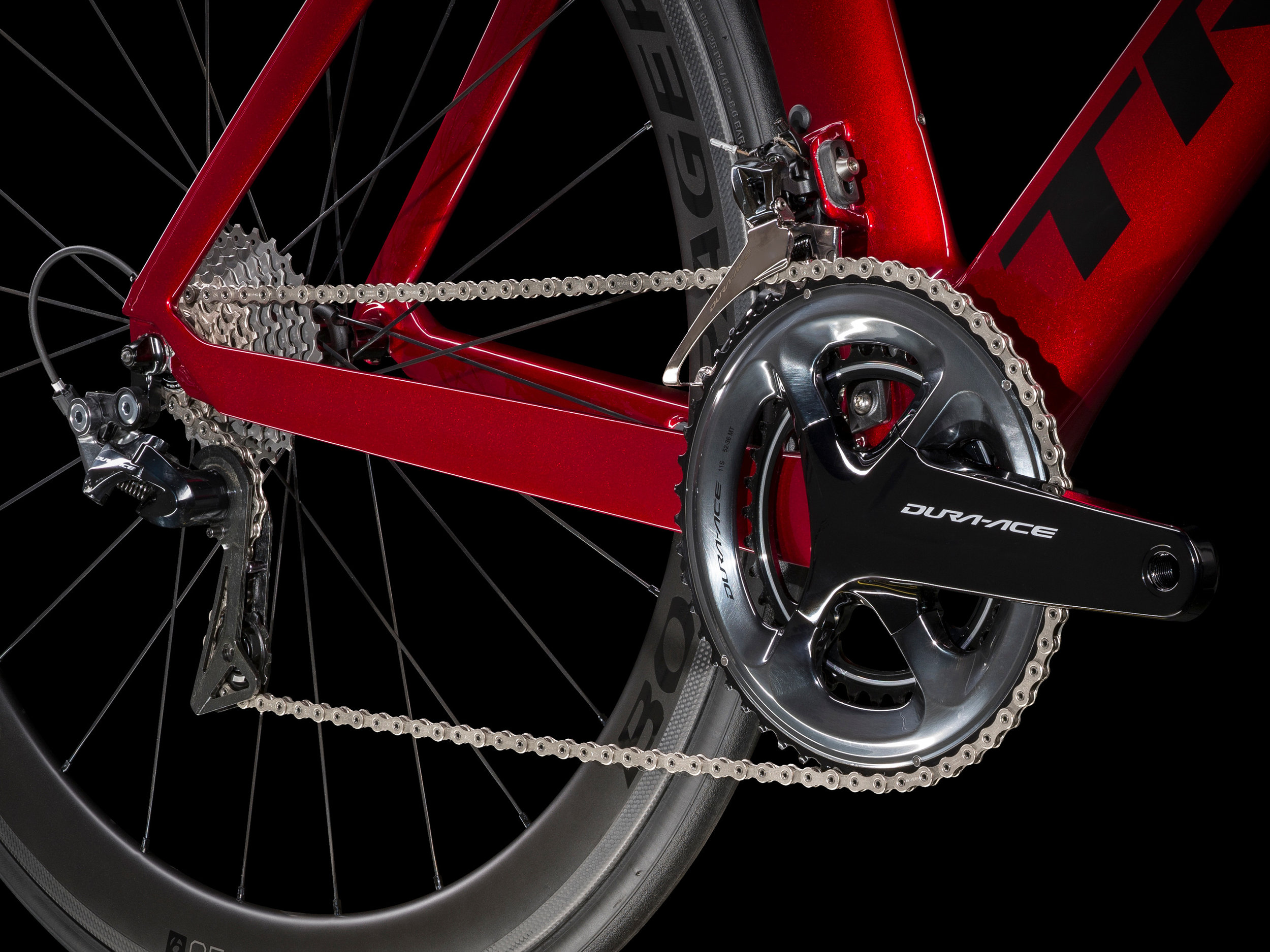

Shifters - Shimano Dura-Ace, 11 speed
Front derailleur - Shimano Dura-Ace, braze-on
Rear derailleur - Shimano Dura-Ace
Crank - Shimano Dura-Ace, 50/34 (compact)
Bottom bracket - BB90
Cassette - Shimano Dura-Ace, 11-28, 11 speed
Chain - Shimano Dura-Ace
Components
Saddle - Bontrager Montrose Elite, titanium rails
Seatpost - Madone carbon seatpost, 25mm offset w/integrated light mount
Handlebar - Madone specific adjustable aero VR-CF, internal cable routing
Grips - Bontrager tape
Stem - Madone-specific internal cable routing
Head set - Madone integrated, stainless cartridge bearings, sealed, 1-3/8˝ top, 1.5˝ bottom

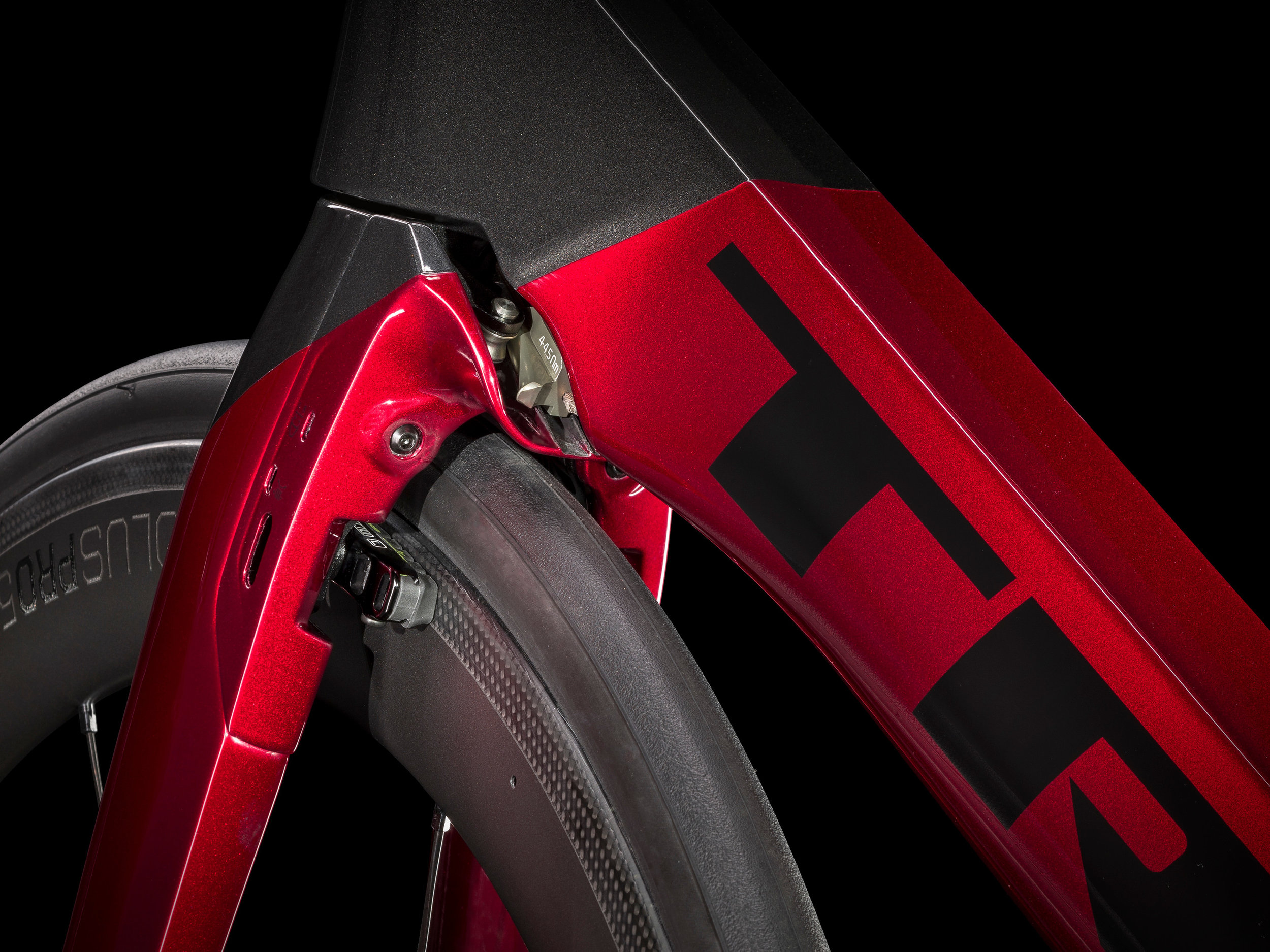

Brake set - Madone aero, integrated
Weight
Weight - 56cm - 7.35 kg / 16.2 lbs
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Sizing & fit
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local Trek retailer.

All measurements provided in cm unless otherwise stated.
